Raised Arc Wave 3D Cement Wall Tile for Backsplash – LANDERY MOSAIC
Raised arc wave. Interior / exterior walls.
| Material | Reinforced Fine Composite Concrete (UHPC) |
|---|---|
| Weight | 0.4 kg/pc · 26 kg/m² |
| Surface | Raised arc wave |
| Application | Interior / exterior walls |
| Collection | Classic Collection 2025 |
100+ custom colours in stock. Send a RAL, Pantone or NCS reference for colour matching.
Price on request — quantity, finish and destination determine the quote.
Product Description
Raised Arc Wave 3D Cement Wall Tile for Backsplash — a 20 mm relief tile in 125 × 125 mm modules, 64 pcs/m² coverage, 26 kg/m² installed. Cast in reinforced fine composite concrete and rated for interior and exterior walls, it ships factory-direct in 24 standard colours, with custom colour casting in 100+ chart shades (RAL / Pantone matching for trade projects). Free samples available.

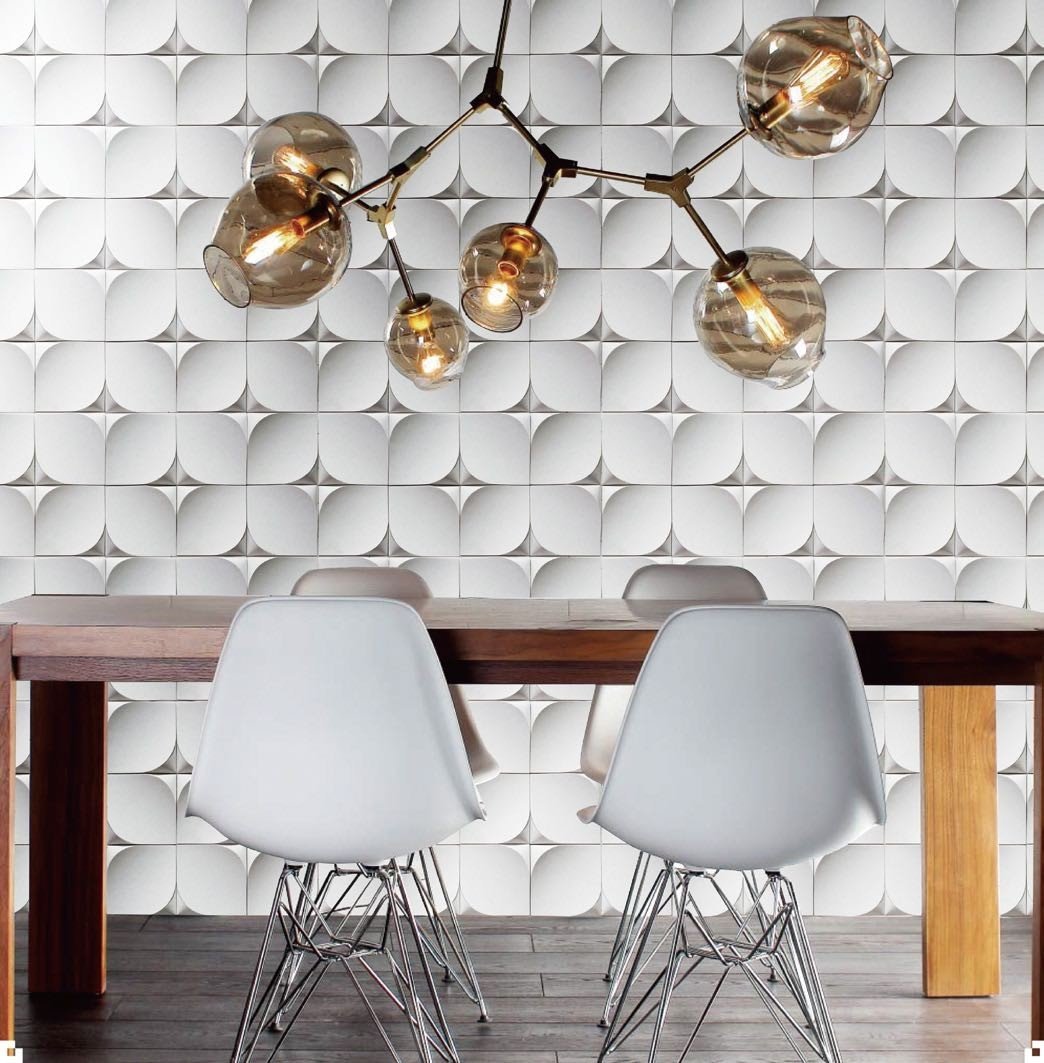

Project gallery

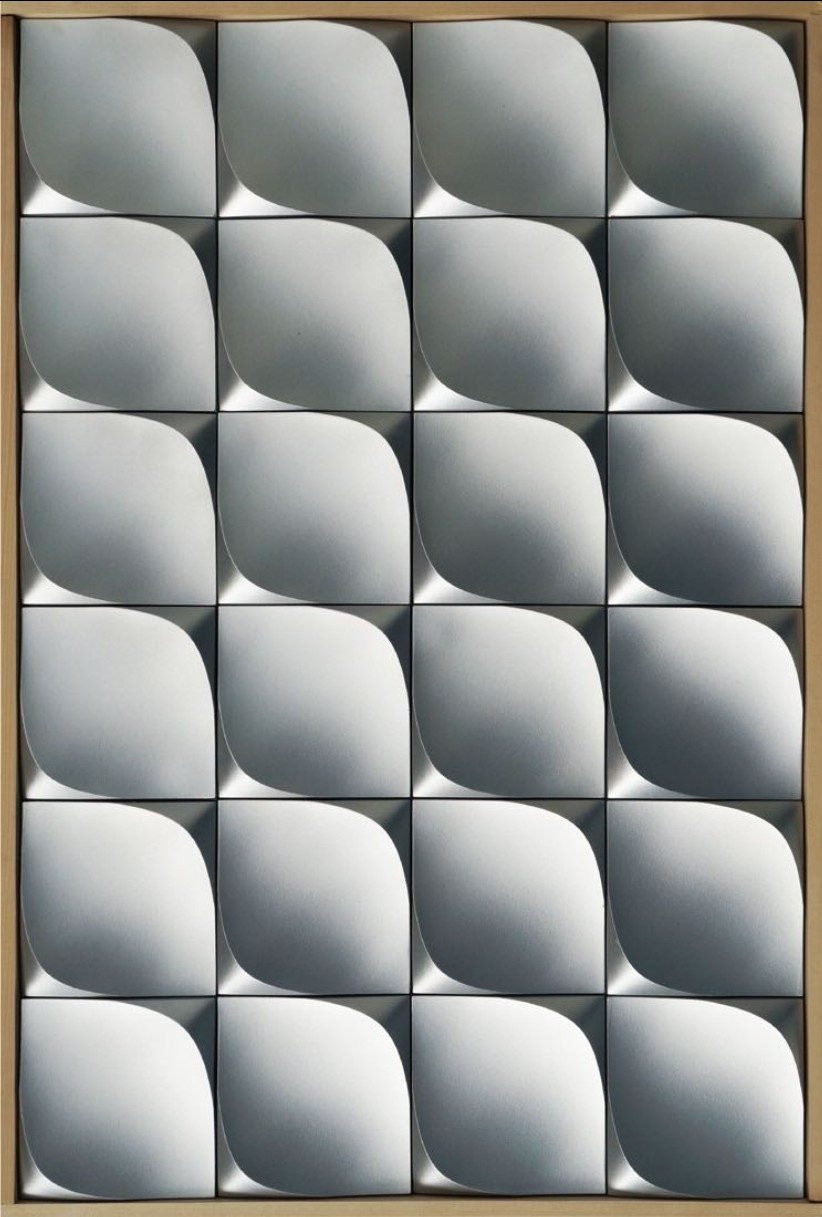

Each square of the Raised Arc Wave 3D concrete wall tile carries one raised arc, so a wall becomes a field of repeating curved ridges. The compact 125 × 125 mm module covers 64 pieces per square meter, and the arcs can be turned to form waves, fans or chevrons. Raised Arc Wave is simple in detail and rich in pattern. Because one square holds one arc, the orientation can shift from row to row without any wasted material.
Design & Applications
One raised arc is easy to combine with others, which makes this tile unusually flexible for backsplashes and small feature areas where the orientation can change from row to row. The curved profile also suits bathroom walls, where it lifts a plain splashback. In a broader scheme it complements a longer arc such as the Wind 3D wall tile.
- Kitchen and bathroom backsplashes
- Powder room and vanity feature walls
- Bar fronts and cafe counters
- Small exterior panels on covered terraces
Specifications
- Module size: 125 × 125 mm
- Thickness: 20 mm
- Coverage: 64 pcs/m²
- Weight: 0.4 kg/pc · 26 kg/m²
- Material: Reinforced Fine Composite Concrete (UHPC)
- Finish: Raised arc wave
- Application: Interior / exterior walls
Finishes & Ordering
Raised Arc Wave is made in 24 standard colours and shipped factory-direct, letting a single tone run across the whole field or individual arcs be contrasted. Rotation options make the pattern yours. Order a sample to check the arc profile up close.
Custom Colours – Any Shade from Our Colour Chart
Every LANDERY MOSAIC design can be custom-cast in 100+ colours from our studio colour chart: warm neutrals, beige and terracotta (KT series), cool greys (KB), brick reds (KR), ochre yellows (KY), dusty and saturated blues (KS / KA), sage greens (KG), taupe browns (KZ) and burnt oranges (KO). For architects, interior designers and shopfitting teams we offer custom colour matching – send a RAL, Pantone or NCS reference (or a physical sample) and we will cast the Raised Arc Wave relief in your project colour. Made-to-order production keeps the same reinforced fine composite concrete body and the same relief depth in every shade, so a bespoke colour never compromises the tile.

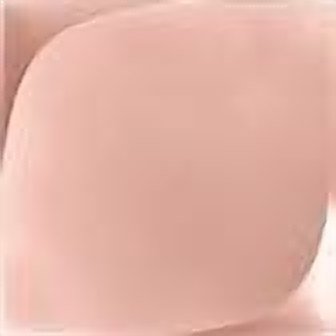

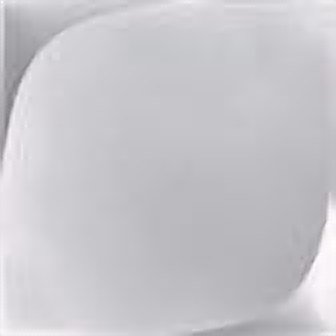

Standard palette for Raised Arc Wave (4 finishes in stock) – and any shade from the charts above can be custom-cast:
Frequently Asked Questions
What size are Raised Arc Wave tiles and how many do I need per square metre?
Each tile in the Raised Arc Wave 3D Cement Wall Tile range measures 125 × 125 mm and stands 20 mm proud of the wall. Coverage is 64 pcs/m², so a 10 m² feature wall needs about 640 tiles. Allow an extra 8–10% for cuts at corners, openings and the end of each run.
How heavy is Raised Arc Wave once it is on the wall?
One Raised Arc Wave tile weighs 0.4 kg and a finished square metre weighs 26 kg. That sits in the medium range: use a cement-based adhesive rated for the load and make sure the substrate is flat and firmly bonded, with any hollow plaster removed first.
Can Raised Arc Wave be used outdoors, in a bathroom or on a shower wall?
The Raised Arc Wave 3D Cement Wall Tile is made from Reinforced Fine Composite Concrete (UHPC) and is rated for both interior and exterior walls. In bathrooms and other wet areas, tank the substrate and seal the joints behind the tile, and keep direct shower spray off the relief. For exposed facades, tell us the project location when you enquire so the fixing, sealing and freeze–thaw detail can be specified for that climate.
What colours does Raised Arc Wave come in, and can I order a sample first?
The Raised Arc Wave 3D Cement Wall Tile is produced in 24 standard colours: 60T WHITE, 10C BEIGE, 5C GREY, 10C GREY, 30C GREY, 10T GREEN, 30C BEIGE, 30C BLUE, 10G PINK, 5G BRICK, ELEPHANT EAR, CAMEL, LOESS, REDDENED EARTH, MT-SILVER, MT-GOLD, MT-BROWN, MT-COFFEE, MT-BLACK, MT-GREEN, MT-FRUIT-GREEN, MT-WATER-BLUE, MT-D-BLUE and MT-WINE-RED. The same tone reads lighter or deeper depending on how the light rakes across the relief, so order a sample tile before committing to a full wall; samples ship from stock and can be ordered one colour at a time. Need a shade that is not on the list? See the Custom Colours section above – this design can be cast in 100+ chart shades or matched to your own reference.
Can I order Raised Arc Wave in a custom colour?
Yes. Beyond the standard palette, the Raised Arc Wave 3D Cement Wall Tile can be cast in any of the 100+ shades on the LANDERY colour chart – beige and terracotta (KT), grey (KB), brick red (KR), ochre yellow (KY), blue (KS / KA), green (KG), taupe (KZ) and orange (KO). For trade and project orders we also do custom color matching to RAL, Pantone or NCS codes – tell us the shade and quantity and we will confirm lead time and arrange a sample in that colour.
How is Raised Arc Wave installed, and how do I keep the pattern aligned?
Fix with a cement-based tile adhesive on a flat, primed substrate and press each tile firmly into the combed bed. Because the relief is 20 mm deep, set out a dry run first: the pattern only reads correctly when the modules line up, so work from a datum line and check level every few rows. Cut edges with a diamond blade.
