Fan Sections 3D Concrete Wall Tile for Kitchen – LANDERY MOSAIC
Fan-shaped sections. Interior / exterior walls.
| Material | Reinforced Fine Composite Concrete (UHPC) |
|---|---|
| Weight | 0.64 kg/pc · 33 kg/m² |
| Surface | Fan-shaped sections |
| Application | Interior / exterior walls |
| Collection | Classic Collection 2025 |
100+ custom colours in stock. Send a RAL, Pantone or NCS reference for colour matching.
Price on request — quantity, finish and destination determine the quote.
Product Description
Fan Sections 3D Concrete Wall Tile for Kitchen — a 20 mm relief tile in 160 × 180 mm modules, 51 pcs/m² coverage, 33 kg/m² installed. Cast in reinforced fine composite concrete and rated for interior and exterior walls, it ships factory-direct in 24 standard colours, with custom colour casting in 100+ chart shades (RAL / Pantone matching for trade projects). Free samples available.
Project gallery

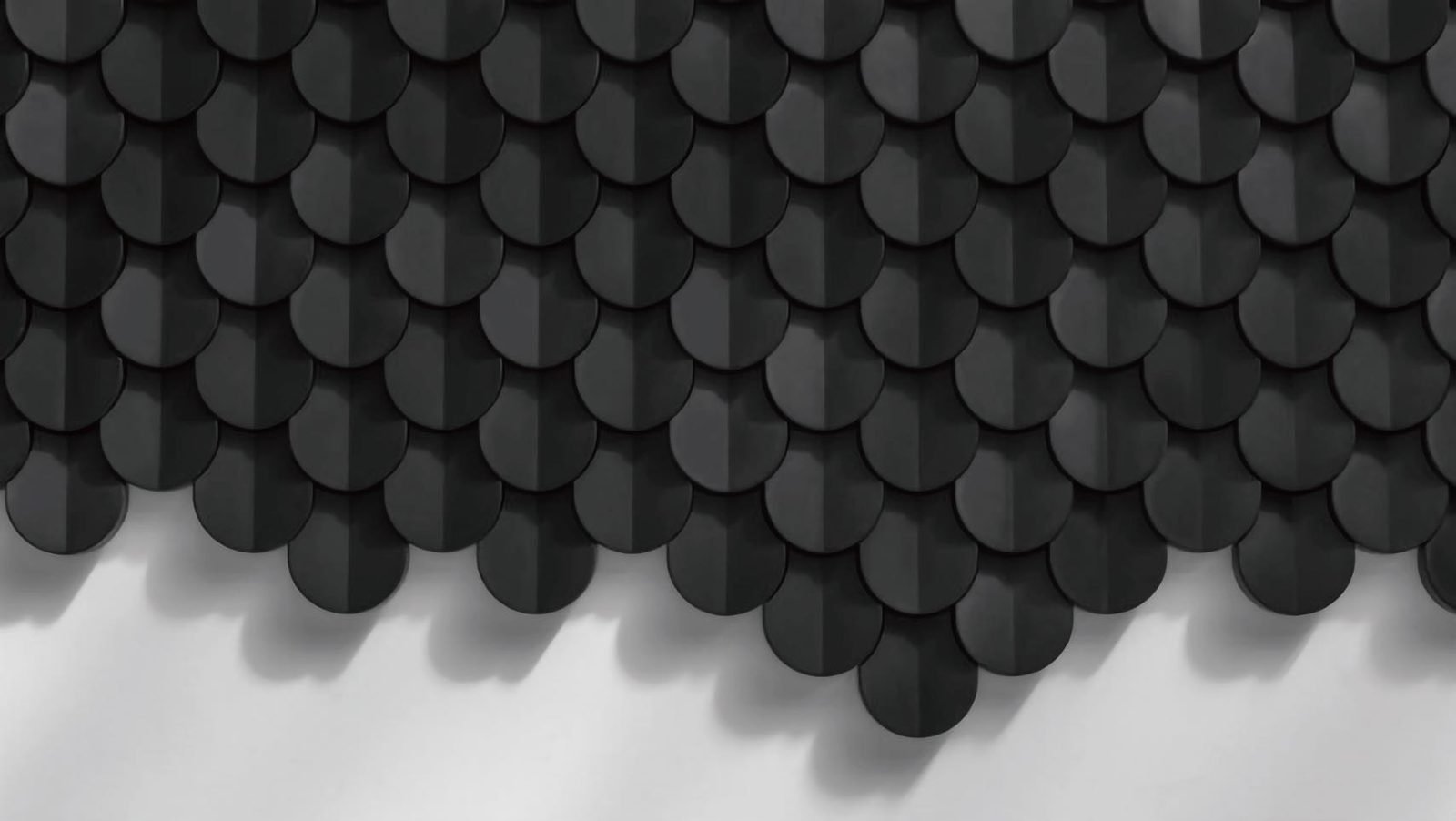

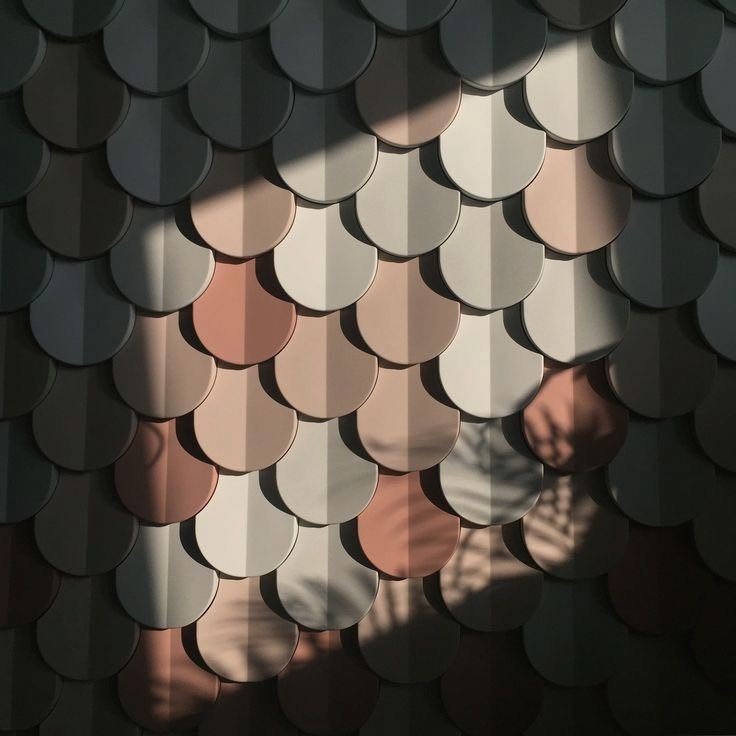

Fan Sections radiate outward across the tiled surface, and the motif repeats like a row of opened hand fans set edge to edge. Each 160 × 180 mm module is a curved, pleated section, so the wall resolves into overlapping arcs rather than a grid. Against kitchen cabinetry, that soft geometry keeps the surface from feeling mechanical.
Design & Applications
Sector carries 20 mm of relief and 33 kg/m², which gives it real presence on an upright panel. It performs best where the pattern can be seen from a short distance, so splashback heights and island ends suit it well. Set it beside a stricter geometric grid such as Geometric 3D wall tile to contrast curve and square without changing material.
- Kitchen backsplash wall behind the hob and worktop
- Sink run and tap wall above a countertop
- Kitchen island side panel facing the dining area
- Cafe, bar and bakery counter fronts in commercial fit-outs
Specifications
- Module size: 160 × 180 mm
- Thickness: 20 mm
- Coverage: 51 pcs/m²
- Weight: 0.64 kg/pc · 33 kg/m²
- Material: Reinforced Fine Composite Concrete (UHPC)
- Finish: Fan-shaped sections
- Application: Interior / exterior walls
Finishes & Ordering
Sector is made in 24 standard colours and shipped factory-direct from our own casting facility. The Fan Sections 3D cement wall tile can be sampled in any of those colours, which matters in a kitchen where the wall sits close to cabinet fronts, worktops and appliance finishes.
Custom Colours – Any Shade from Our Colour Chart
Every LANDERY MOSAIC design can be custom-cast in 100+ colours from our studio colour chart: warm neutrals, beige and terracotta (KT series), cool greys (KB), brick reds (KR), ochre yellows (KY), dusty and saturated blues (KS / KA), sage greens (KG), taupe browns (KZ) and burnt oranges (KO). For architects, interior designers and shopfitting teams we offer custom colour matching – send a RAL, Pantone or NCS reference (or a physical sample) and we will cast the Fan Sections relief in your project colour. Made-to-order production keeps the same reinforced fine composite concrete body and the same relief depth in every shade, so a bespoke colour never compromises the tile.

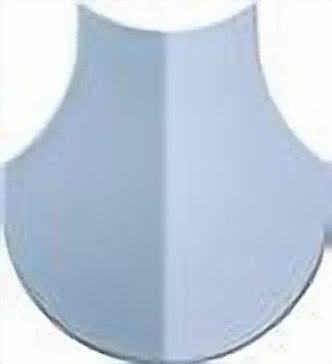

Standard palette for Fan Sections (5 finishes in stock) – and any shade from the charts above can be custom-cast:
Frequently Asked Questions
What size are Fan Sections tiles and how many do I need per square metre?
Each tile in the Fan Sections 3D Concrete Wall Tile range measures 160 × 180 mm and stands 20 mm proud of the wall. Coverage is 51 pcs/m², so a 10 m² feature wall needs about 510 tiles. Allow an extra 8–10% for cuts at corners, openings and the end of each run.
How heavy is Fan Sections once it is on the wall?
One Fan Sections tile weighs 0.64 kg and a finished square metre weighs 33 kg. At this weight the wall has to be sound and mechanically fixed — on stud partitions add bracing or a tile backer board before fixing, and check the substrate before ordering.
Can Fan Sections be used outdoors, in a bathroom or on a shower wall?
The Fan Sections 3D Concrete Wall Tile is made from Reinforced Fine Composite Concrete (UHPC) and is rated for both interior and exterior walls. In bathrooms and other wet areas, tank the substrate and seal the joints behind the tile, and keep direct shower spray off the relief. For exposed facades, tell us the project location when you enquire so the fixing, sealing and freeze–thaw detail can be specified for that climate.
What colours does Fan Sections come in, and can I order a sample first?
The Fan Sections 3D Concrete Wall Tile is produced in 24 standard colours: 60T WHITE, 10C BEIGE, 5C GREY, 10C GREY, 30C GREY, 10T GREEN, 30C BEIGE, 30C BLUE, 10G PINK, 5G BRICK, ELEPHANT EAR, CAMEL, LOESS, REDDENED EARTH, MT-SILVER, MT-GOLD, MT-BROWN, MT-COFFEE, MT-BLACK, MT-GREEN, MT-FRUIT-GREEN, MT-WATER-BLUE, MT-D-BLUE and MT-WINE-RED. The same tone reads lighter or deeper depending on how the light rakes across the relief, so order a sample tile before committing to a full wall; samples ship from stock and can be ordered one colour at a time. Need a shade that is not on the list? See the Custom Colours section above – this design can be cast in 100+ chart shades or matched to your own reference.
Can I order Fan Sections in a custom colour?
Yes. Beyond the standard palette, the Fan Sections 3D Cement Wall Tile can be cast in any of the 100+ shades on the LANDERY colour chart – beige and terracotta (KT), grey (KB), brick red (KR), ochre yellow (KY), blue (KS / KA), green (KG), taupe (KZ) and orange (KO). For trade and project orders we also do custom color matching to RAL, Pantone or NCS codes – tell us the shade and quantity and we will confirm lead time and arrange a sample in that colour.
How is Fan Sections installed, and how do I keep the pattern aligned?
Fix with a cement-based tile adhesive on a flat, primed substrate and press each tile firmly into the combed bed. Because the relief is 20 mm deep, set out a dry run first: the pattern only reads correctly when the modules line up, so work from a datum line and check level every few rows. Cut edges with a diamond blade.
